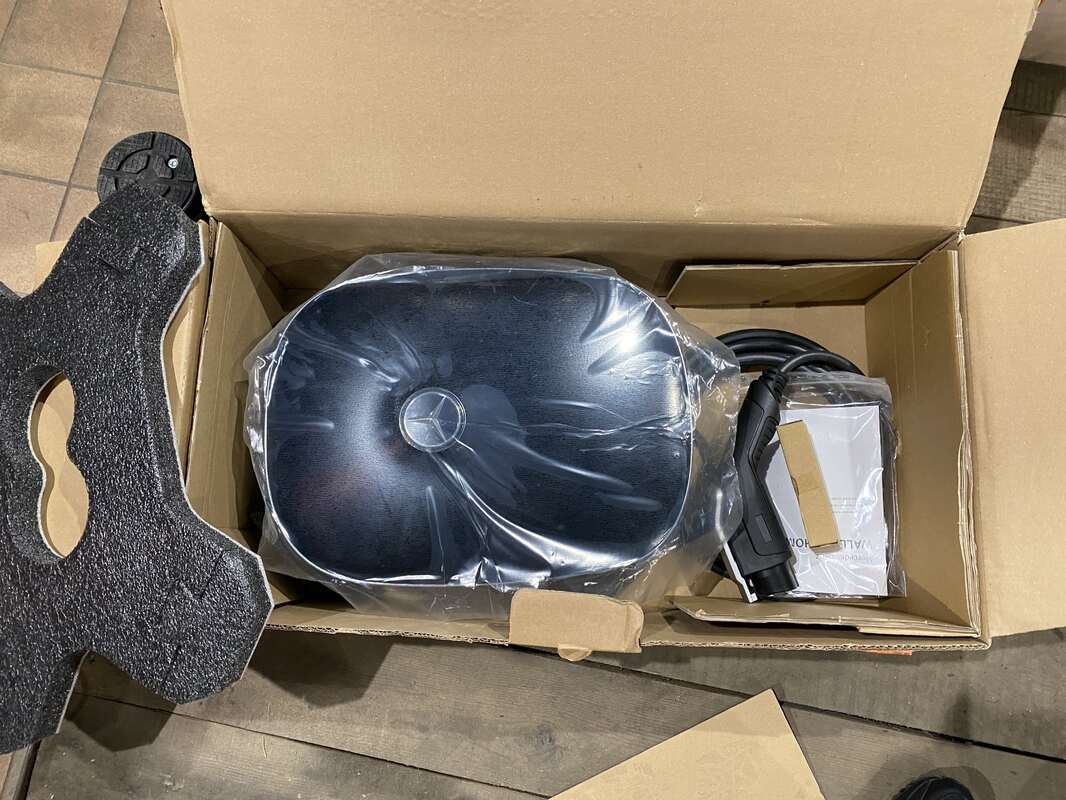

Зарядна станція Mercedes-Benz Smart 451 ED 453 ED EQ A0009067108

Technical specifications

Variant A0009067108

Compliance IEC 61851-1 / 61439-7Power supply for supply cable sizes up to 3 x 16 mm² Rated voltage see product label Rated current 30 A, single phase Rated frequency 60 Hz Max. output 7.2 kW Charging connection Змішаний charging cable with charging plug according to IEC 62196-2 Type 1, ca. 6 m Circuit-protection devices Type A 30 mA RCCB and DC-RCM, IΔn dc electronic DC fault current detection ≥ 6 mA Control / Customization Internal RS485 interface (interface for externa charge control, no access for users/installation technicians) Upstream fuse C characteristic MCB, поточний поточний до Power Supply and Wallbox setting but no more than 30 A PE system TN Temperature -30 to 50°C Storage temperature -30 to 85° ) 4 kV Отриманий період з Stand current (Ipk) 6 & A; Rated short-time withstand current (Icw) 5 &kb; 1.0 Ступінь захисту (накопичувач) IP 55 Impact strength IK08 Dimensions (housing) 438 x 328 x 170 мм (H x W x D) Maximum elevation ≤ 2,000 m AMSL (за межами моря рівень) Weight per unit (net) approx. 8.5 kg Weight per unit (gross) approx. 10 кг
