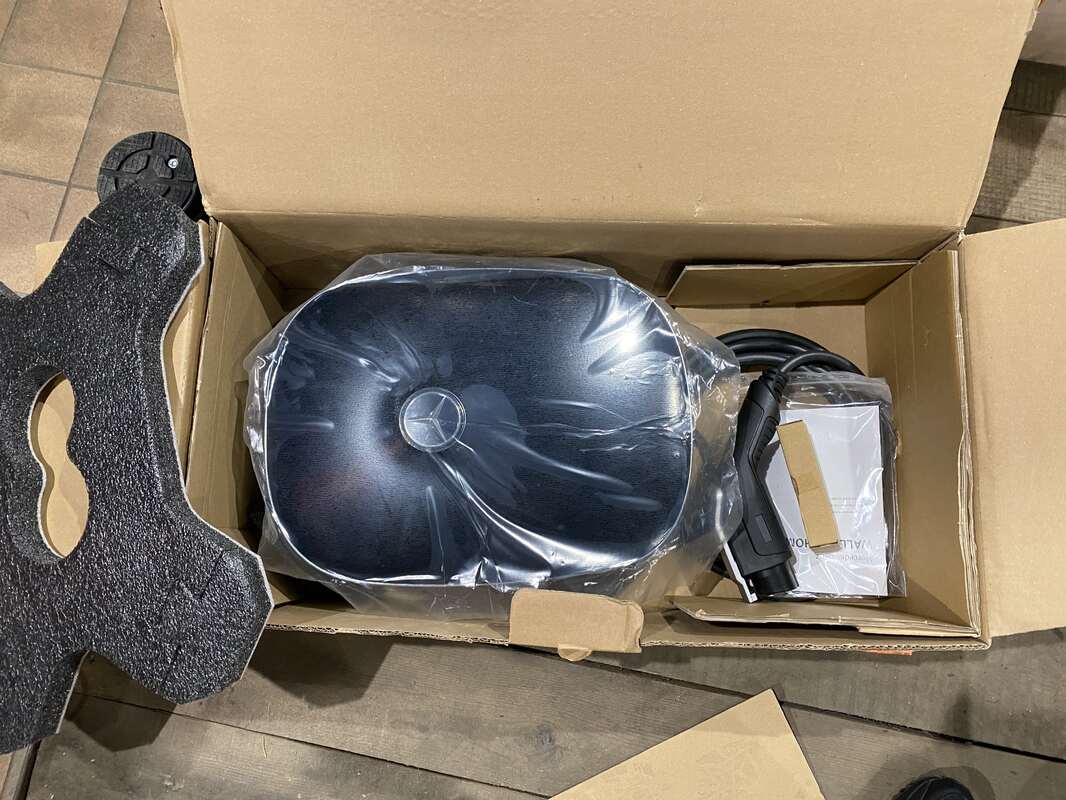

Зарядная станция Mercedes-Benz Smart 451 ED 453 ED EQ A0009067108

Technical specifications

Variant A0009067108

Compliance IEC 61851-1 / 61439-7Power supply for supply cable sizes of up to 3 x 16 mm² Rated voltage see product label Rated current 30 A, single phase Rated frequency 60 Hz Max. output 7.2 kW Charging connection Fixed charging cable with charging plug according to IEC 62196-2 Type 1, ca. 6 m Circuit-protection devices Type A 30 mA RCCB and DC-RCM, IΔn d.c. electronic DC fault current detection ≥ 6 mA Control / Customization Internal RS485 interface (interface for external charge control, no access for users/installation technicians) Upstream fuse C characteristic MCB, rated current according to power supply and Wallbox setting but no more than 30 A PE system TN-S Operating temperature -30 to 50°C Storage temperature -30 to 85°C Relative humidity 5 to 95% (no condensation) Class of protection I Overvoltage category III Degree of pollution 3 Rated insulation voltage (Ui ) 4 kV Rated impulse voltage (Uimp) 4 kV Rated peak withstand current (Ipk) 6 kA Rated short-time withstand current (Icw) 5 kA Rated conditional short-circuit current (Icc) 6/10 kA (C tripping characteristic) Rated diversity factor (RDF) 1.0 Degree of protection (housing) IP 55 Impact strength IK08 Dimensions (housing) 438 x 328 x 170 mm (H x W x D) Maximum elevation ≤ 2,000 m AMSL (above mean sea level) Weight per unit (net) approx. 8.5 kg Weight per unit (gross) approx. 10 kg
